Horizontal shaft shredders
DMF Poly-Green Shredder
![DMF poly-green Desvoys](/media/dmf-poly-green-desvoys.jpg)
![DMF Poly-green](/media/dmf-poly-green.jpg)
A verge shredder suitable for small tractors.
The DMF POLY-GREEN shredder is designed for users who want very fine shredding without excessive power consumption. With its reduced overhang, this machine can be hitched onto compact tractors while retaining excellent amplitude and versatility of movement.
Key points
Rotor![Rotor Poly-green](/media/rotor-poly-green-2.jpg)
Rotor with 6 rows of B6 hammer cutters for great versatility and fine shredding.

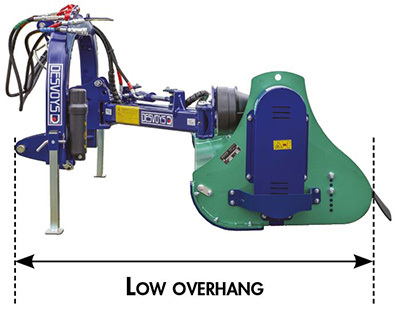

Optimised chassis![porte à faux DMF poly-green -EN](/media/porte-a-faux-dmf-poly-green-en.jpg)
Optimised chassis and kinematics to reduce overhang, making it suitable even for compact tractors.
Double parallelogram arm with integrated cylinder for sturdiness and extended implement life.
Safety in the event of an obstacle![Bielle DMF poly-green](/media/bielle-dmf-poly-green.jpg)
Retractable connecting rod allowing the shredder unit to be retracted in the event of an obstacle. It then resets automatically.
Star tube transmission ![DMF_POLYGREEN_boitier](/media/dmf-polygreen-boitier-1.jpg)
Star tube transmission for greater durability in all working positions.
Gearbox with built-in free wheel and transmission via 4 V-belts for reliable power transmission.
Adjustable cutting height![DMF patin semelle hardox](/media/dmf-patin-semelle-hardox.jpg)
Adjustable cutting height via a reinforced roller with removable sealed end caps.
Skids with bolt-on, wear-resistant plate for sturdiness and extended implement life.
Specifications
Working width | 1.20 to 1.80 m |
---|---|
PTO speed | 540 rpm |
Tractor power | 35 to 100 hp |
Hitch | category 2 floating clevis hitch with parallelogram offset |
Cutting diameter: | 360 mm |
Number of hammer cutters | 18 to 26 |
Counter-cutters | bottom welded comb |
Adjustable terrain tracking | reinforced roller with removable sealed end caps |
Weight | 630 to 708 kg |
Options | please refer to the product sheet below. |

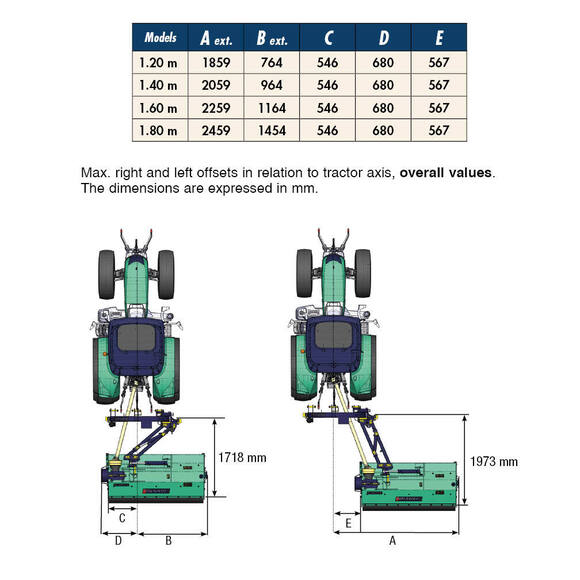

![déport DMF poly-green EN.JPG](/media/thumbnails/deport-dmf-poly-green-enjpg.jpg)

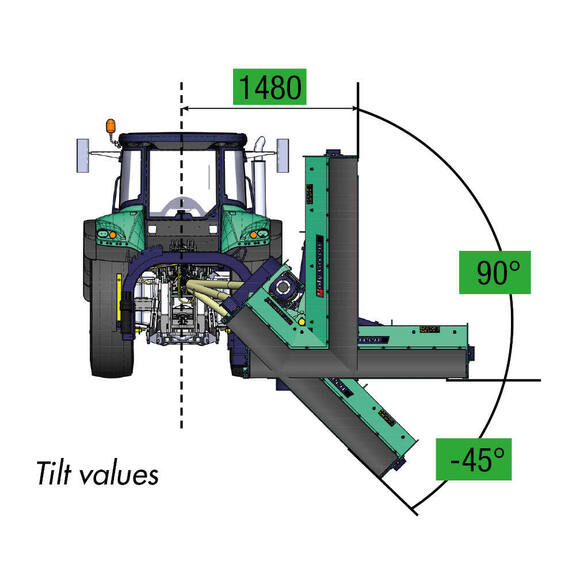

![Inclinaison DMF polygreen EN](/media/thumbnails/inclinaison-dmf-polygreen-en.jpg)
