Horizontal shaft shredders
Mixte-Cut shredder
Many combinations available for a versatile horizontal shaft shredder.
To suit all types of sites and tractors, the shredder offers different coupling possibilities and a wide range of options. Its versatility, shredding quality, ergonomics and working comfort mean it can meet the needs of all professionals.
Key points
Closed housing
Lowered, closed housing for optimum shredding and armour plated for improved resistance to impacts and wear.
Hitch
Reversible, push-pull or mixed clevis hitch for great versatility.
Hydraulic offset on 2 slides for excellent manoeuvrability.
Adjustable roller
Reinforced roller with removable sealed end caps sealed end caps, height-adjustable for good terrain tracking and depth-adjustable to facilitate ejection and roller cleaning.
Gearbox
Double throughput gearbox with double free wheel that adapts regardless of the PTO direction of rotation.
Specifications

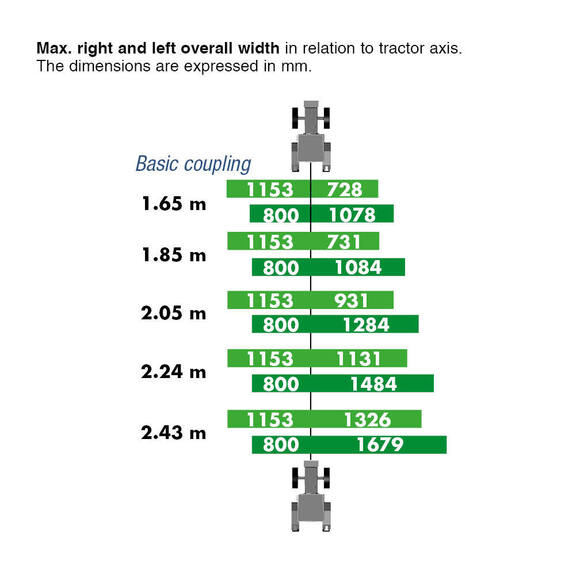

| Working width | 1.65 to 2.43 m |
|---|---|
| PTO speed | 540 or 1000 rpm |
| Tractor power | 50 to 130 hp |
| Hitch | category 2 clevis hitch |
| Cutting diameter | 435 mm |
| Number of hammer cutters | 20 to 24 |
| Counter-cutters | flat welded, bottom |
| Adjustable terrain tracking | reinforced roller with removable sealed end caps |
| Weight | 725 to 906 kg |
| Options | machine can be upgraded to meet your needs. |
