Horizontal shaft shredders

Arbo-Cut Shredder

Broyeur Arbo-cut Desvoys
  • Broyeur Arboriculture
  • Arbo-cut
Fabriqué en France

Professional shredder specially designed for inter-row maintenance in arboriculture.

1.65 to 2.43m
45 to 130 hp

The ARBO-CUT shredder offers top-level performance for all maintenance work in arboriculture.Its optimised housing profile and 3 counter-cutters provide extra fine shredding. Moreover, its wide front opening and heavy hammer cutters allow it to both mow grass and shred prunings.

Key points

Small footprintArbo-cut Encombrement

Shredder designed with extra-flat sides and reduced height of the drive housing to facilitate its passage under branches and protect the fruit.


Wide openingouverture arbo-cut

Wide front opening for better matter intake, especially prunings.


Hitchattelage arbo-cut-EN.JPG

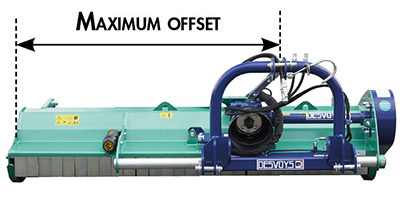

Hydraulic offset hitch for greater right-hand offset and improved manoeuvrability.

Low overhang to reduce the weight on the hitch and protect the tractor.


RollerRouleau Arbo-cut

Roller with integrated, removable sealed end caps for good tool stability on the ground and extended life.


Satellite adaptation Satellite avec palpeur 1

Optional satellite shredder and bolt-on adaptation to reach vegetation under the rows and automatically bypass trees.

Specifications

Working width 1.65 to 2.43 m
PTO speed 540 or 1000 rpm
Tractor power 45 to 130 hp
Hitch category 1 & 2 clevis hitch
Cutting diameter 435
Number of hammer cutters 20 to 24
Counter-cutters flat welded, top and bottom
Adjustable terrain tracking roller
Weight 724 to 860 kg
Options machine can be upgraded to suit your needs.
