Horizontal shaft shredders

Combined Master-Field Shredder

Broyeur Masterfield Mixte Desvoys
  • Master-field-mixte-Desvoys

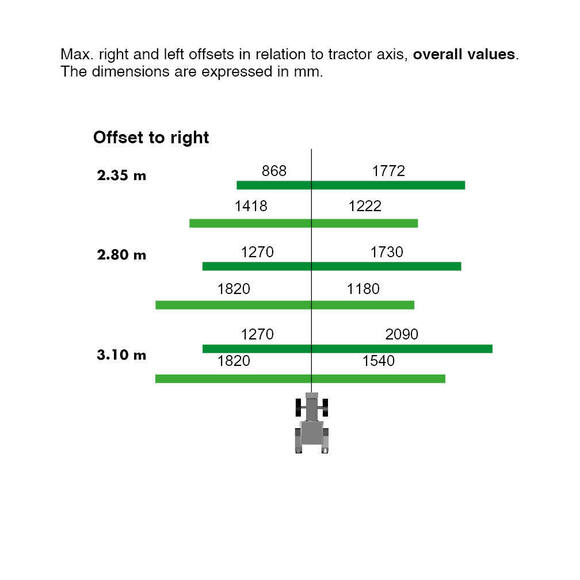

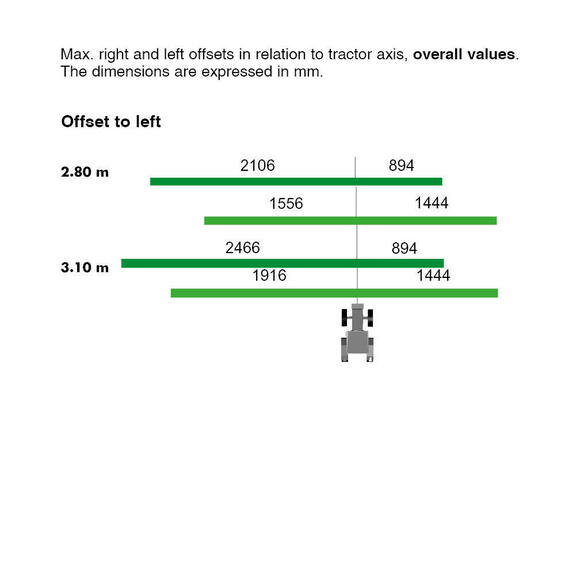

  • Master-field-attelage-mixte-déport gauche
  • Master-field-attelage-mixte-tire-pousse
Fabriqué en France

A horizontal shaft shredder that can be used both in push or pull mode.

2.35 to 3.10m
70 to 220 hp

The Combined MASTER-FIELD shredder offers the same versatility as the Standard MASTER-FIELD with the push or pull coupling option,which improves ergonomics, working comfort and shredding quality. To increase your work throughput, your Combined MASTER-FIELD shredder can also be paired with another rear shredder or a tillage tool.

Request brochures

Key points

RotorRotor Master-field mixte

Rotor equipped with heavy duty B1 hammer cutters for versatile shredding and suction (grass, brambles, bushes, etc.).


HousingMaster-Field Mixte - rotor 2024

Housing equipped with a basic armour plate (10 mm) for good resistance to impacts and wear.



An optional bolt-on Hardox-ENG-Logotype-CMYK-uai-100armour plate is available to further strengthen the machine.


CouplingDouble_Attelage broyeur Desvoys

Double hydraulic offset clevis hitch (1 D.A.). Hitch mounted onto double front and rear galvanised slide to reduce the strain on the housing during intensive use.


GearboxBoitier Mixte cut

Gearbox with incorporated double free wheel to adapt to the PTO direction of rotation.


Cutting heightRouleau Arbo-cut

Adjustable cutting height via a reinforced roller with removable sealed end caps.

Specifications

Working width 2.35 to 3.10 m
PTO speed 540 or 1000 rpm
Tractor power 70 to 220 hp
Hitch  category 2 floating position clevis hitch
Cutting diameter 475 mm
Number of hammer cutters 26 to 34
Counter-cutters removable U-shaped, top and bottom
Adjustable terrain tracking

 roller with removable sealed end caps and a pair of bolt-onHardox-ENG-Logotype-CMYK-uai-100wear-resistant skids

Weight 1435 to 1600 kg
Options machine can be upgraded to suit your needs.
