Vertical shaft shredders
Vineyard Rotary Mower
Fabriqué en France
For the effective maintenance of spaces between rows in vineyards.
1,30 to 1,50m
50 to 100 hp

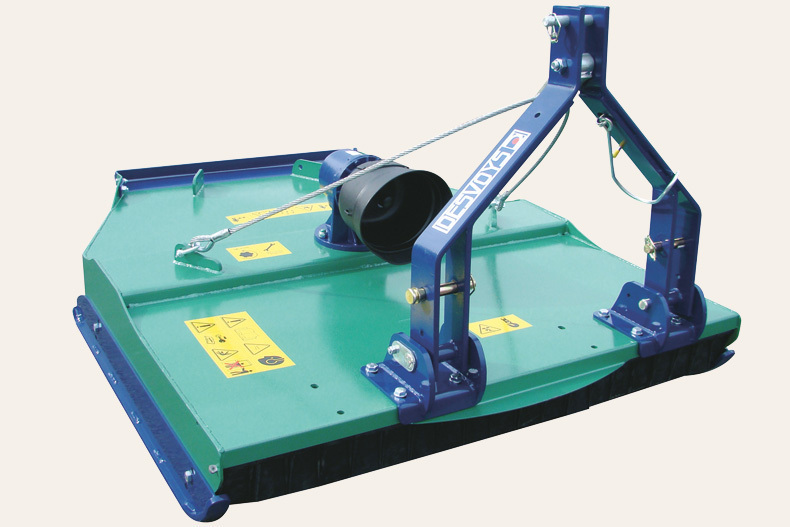

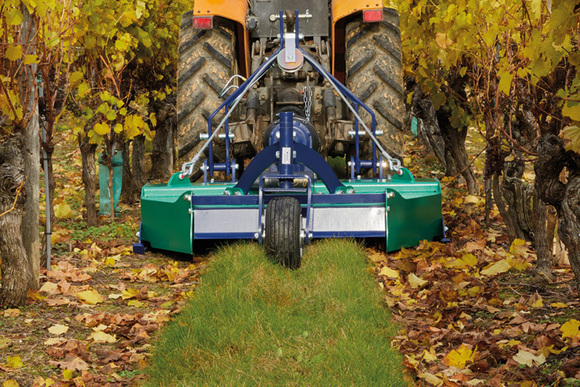

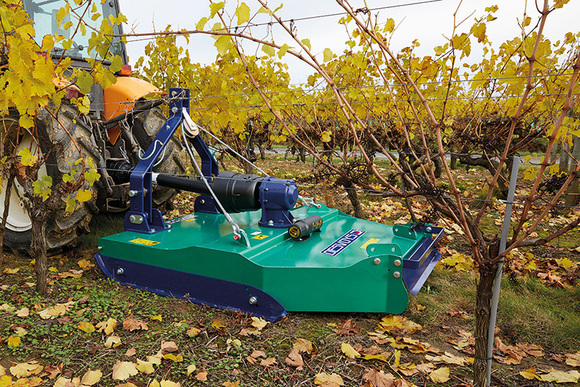

The Vineyard vertical-shaft mower is specially designed for cutting grass and shredding vine prunings in vineyard rows. With its optimised overall dimensions, it works easily on all types of soil, while protecting the crops in all circumstances.
Key points
Housing

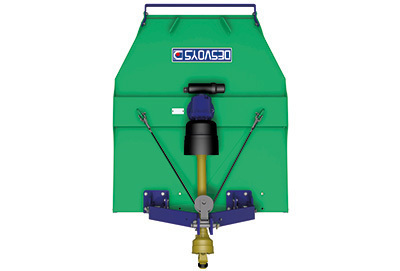

Truncated rear corners and shallower housing to reduce the turning radius.
Rotor

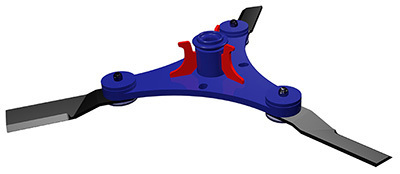

Rotor equipped with 3 blades and fins coupled to 2 counter-cutters for even finer shredding..
Adjustable cutting height

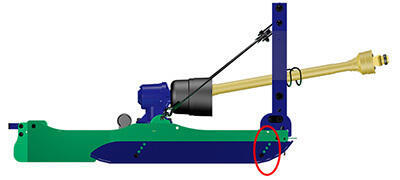

Adjustable cutting height via skids for optimum rotor protection.
Coupling

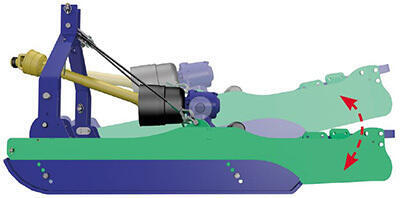

Floating coupling on clevises that can be offset for working on all types of terrain.
Anti-ejection

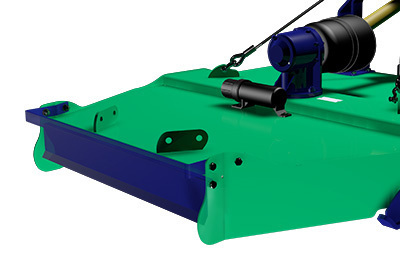

Front anti-ejection strips and rear hinged metal flap for effective protection..
Specifications
| Working width | 1.30 or 1.50 m |
|---|---|
| Tractor power | 50 to 100 hp |
| PTO speed | 540 rpm |
| Rotor | triangular - 3 cutters |
| Cutting height | 60 to 210 mm |
| Weight | 350 to 409 kg |
| Options | machine can be upgraded to suit your needs. |
