Horizontal shaft shredders

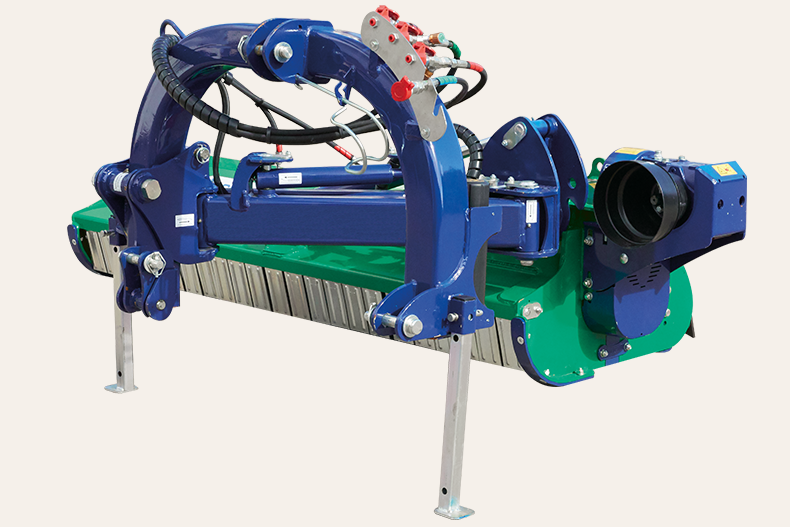

Iris Sidemulcher
Shoulder shredder with offset housing for easy maintenance.

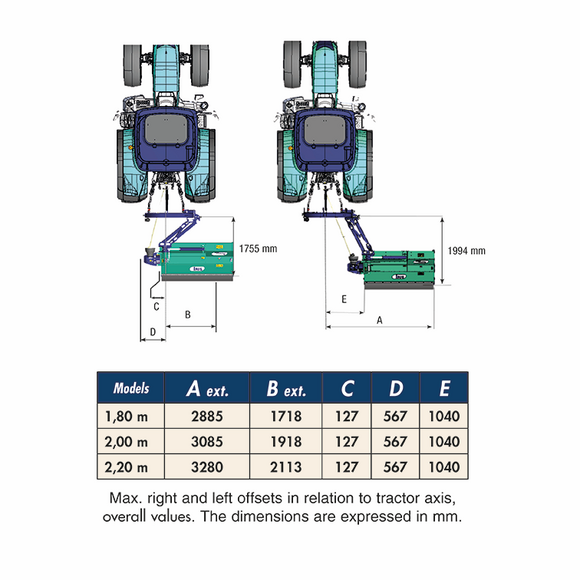

With its exterior housing, the Iris crusher allows significant lateral offset. An ideal solution for maintaining roadsides, orchards and bushes, including for large tractors.
Key points
Hitch
Welded hitch with a connecting rod on one of the lower hitch points preventing damages to the structure in the event of collision with obstacles
Externally gearbox
Externally mounted gearbox for easier ditch work and to match with wide track tractors
Rotor
Rotor fitted with B2 solid hammer cutters, optimised for efficient shredding in all circumstances.
Ground tracking

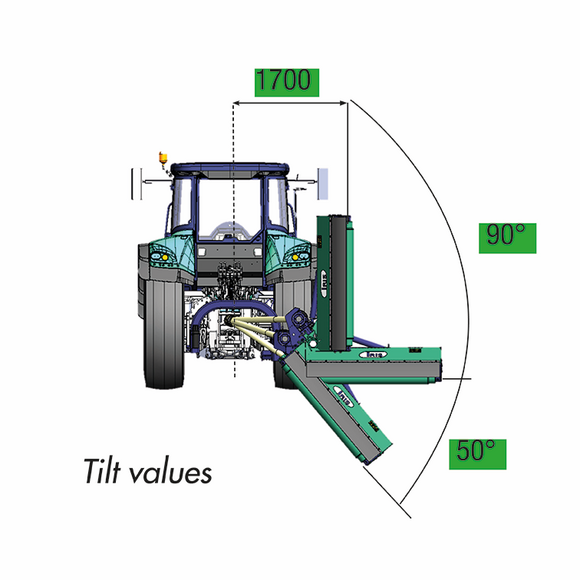

Optmised ground tracking through the floating position of the tilt cylinder.
Adjustable cutting height
Adjustable cutting height via a reinforced roller with removable sealed end caps and pair of skids with bolted-on base plate in
Specifications
| Working width | 1.80 to 2.25 m |
|---|---|
| PTO speed | 540 rpm |
| Tractor power | 80 to 200 hp |
| Hitch | floating clevis hitch with parallelogram offset |
| Cutting diameter | 415 mm |
| Number of hammer cutters | 20 to 24 |
| Counter-cutters | flat welded top and bottom |
| Adjustable terrain tracking | roller with removable sealed end caps |
| Weight | 870 to 950 kg |
| Options | machine can be upgraded to suit your needs. |
