Horizontal shaft shredders
DMF entreprise PLUS Shredder
Ideal for clearing verges thanks to its large offset.

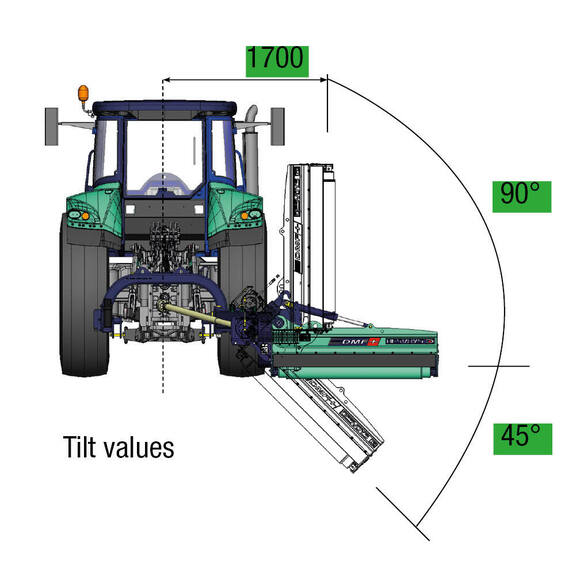

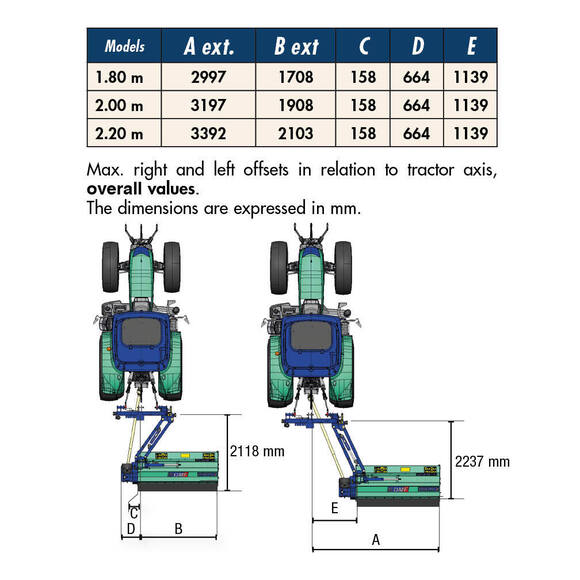

The DMF + ENTREPRISE shredder is designed for intensive work in difficult spaces. Its special design provides it with an extra 332 cm of offset, making it easier to maintain roadside verges and enabling it to be hitched onto wide-track tractors.
Key points
External gearbox
Gearbox positioned externally to increase the lateral offset compared with the DMF Entreprise model.
Rotor
Large diameter rotor with B1 hammer cutters, optimally positioned for fine shredding in all circumstances.
Parallelogram arm
180 x 80 mm parallelogram arm for improved stability and sturdiness.
Ø 40 mm joint bushing for long service life.
Square bent-tube hitch
Mechanically-welded large floating hitch and "NON-STOP" safety device for increased working versatility and mechanical retraction.
Armour plate
Armour plated shredder housing for improved resistance to impacts and wear.
Adjustable cutting height
Adjustable cutting height via a reinforced roller with removable sealed end caps.
Skids with bolt-on wear-resistant plate for greater sturdiness and extended tool life.
Specifications
Working width | 1.80 to 2.20 m |
---|---|
PTO speed | 540 rpm |
Tractor power | 80 to 200 hp |
Hitch | category 2 floating clevis hitch with parallelogram offset |
Cutting diameter | 435 mm |
Number of hammer cutters | 20 to 24 |
Counter-cutters | flat welded top and bottom |
Adjustable terrain tracking | roller with removable sealed end caps |
Weight | 1100 to 1180 kg |
Options | machine can be upgraded to suit your needs. |
