Horizontal shaft shredders

Front-Cut Shredder

Broyeur Front-Cut Desvoys
  • Front-cut-broyeur
  • Front cut au travail
Fabriqué en France

Easy shredding on steep slopes.

1.85 to 2.05m
50 to 130 hp

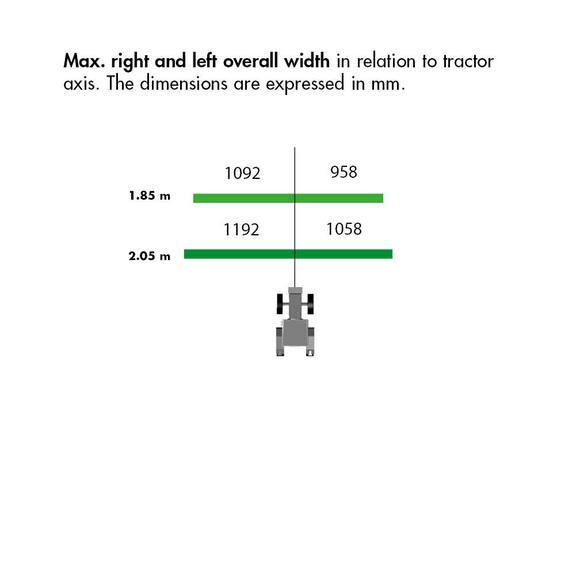

Specially developed for hillside tractors,  the FRONT-CUT shredder has an optimised hitch and housing structure.  This design has a limited overhang, which reduces the weight on the tractor and optimises the overall centre of gravity.

Key points

Hydraulic covercapot front cut.JPG

Cover with hydraulic cylinder opening for faster matter intake and shredding of large vegetation.


RotorROTOR DMF PG

Rotor equipped with heavy duty B1 hammer cutters, with optimised layout for greater working versatility and extra fine shredding.


CouplingFRONT-CUT attelage

Fixed clevis hitch centred as close to rotor as possible, suitable for slope tractors.


Cutting heightembout rouleau DMF

Adjustable cutting height via a roller to suit the user’s needs.
Reinforced roller with removable sealed end caps sealed end caps to adapt to all types of terrain.

Specifications

Working width 1.85 to 2.05 m
PTO speed 540 or 1000 rpm
Tractor power 50 to 130 hp
Hitch category 1 & 2 clevis hitch
Cutting diameter 435 mm
Number of hammer cutters 20 to 22
Counter-cutters 2
Adjustable terrain tracking roller
Weight 650 to 680 kg
Options machine can be upgraded to suit your needs.
